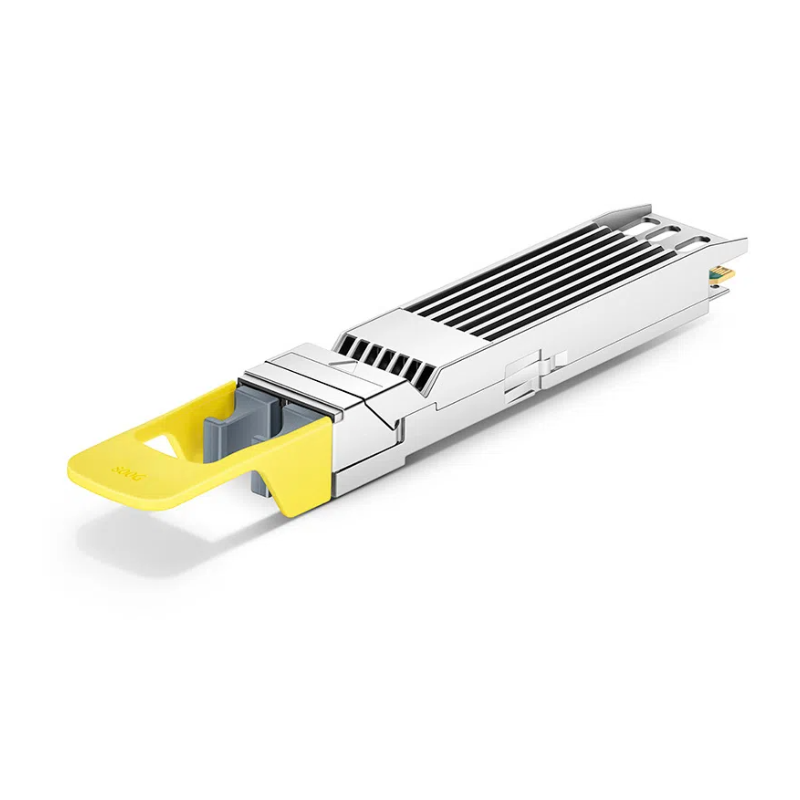

800GBASE-DR8 OSFP optical module (single mode, 1310nm, 500m, dual MTP/MPO-12, DOM)

The universal compatible OSFP optical module supports a link length of up to 500 meters through dual MTP/MPO-12 connectors and single-mode fiber. This optical module complies with IEE802.3ck, IEEE 802.3cu, and OSFP MSA standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operational parameters. It is suitable for 800G Ethernet, 2x 400G DR4 or 8x 100G DR branching, data centers, and cloud networks.

Product features

Built in Broadcom 7nm DSP chip, with a maximum power consumption of 16W

Through parameter testing to ensure excellent performance, quality, and reliability

The high-speed electrical interface complies with IEEE 802.3ck and IEEE 802.3cu-2021 standards

Compliant with hot swappable OSFP MSA standards

Supports 2x400G or 8x100G branching technology to increase port density

8x106.25G PAM4 Retimed 800GAUI-8 Electrical Interface

Provide higher bandwidth for ultra large data centers and cloud infrastructure

Equipped with digital optical monitoring function, providing powerful diagnostic capabilities

Complies with Class 1 FDA laser safety level

application

800G initial bandwidth

2x400GBASE-DR4

Cloud network
