Ⅰ、 Product Introduction

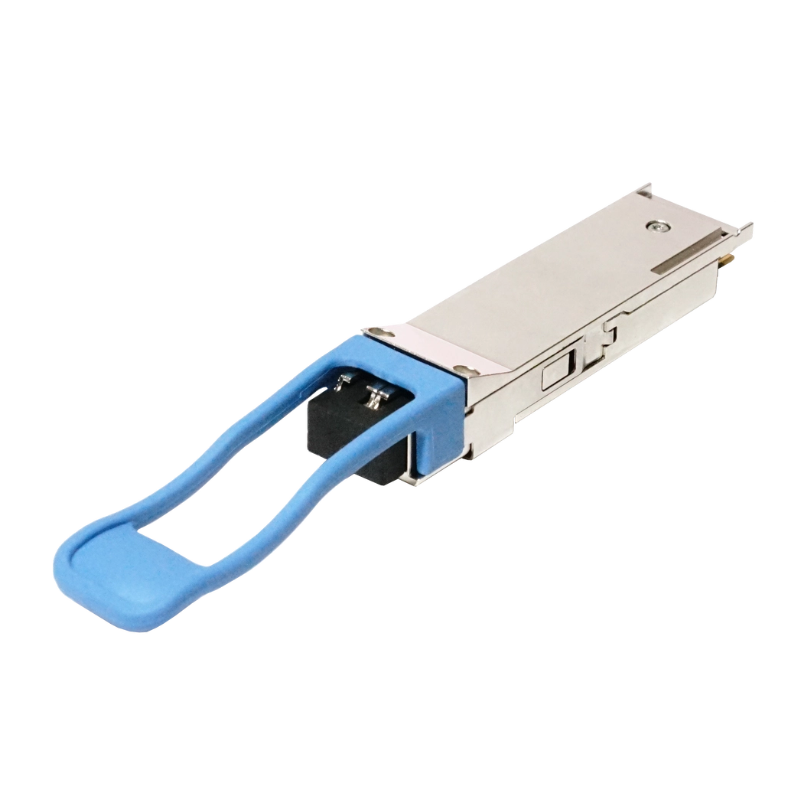

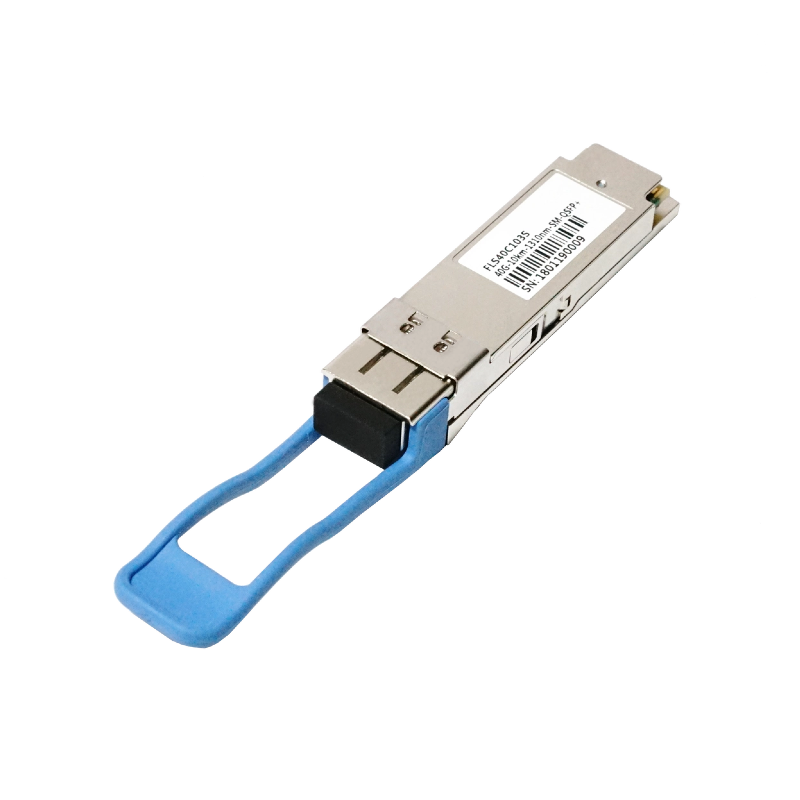

The 40GBASE-LR4L QSFP+optical module uses LC duplex connectors and can transmit distances up to 2km through single-mode optical fibers. It supports DDM function and is applied in 40G Ethernet interconnection solutions.

Ⅱ、 Product features:

1. Adopting hot swappable QSFP+packaging

2. Full duplex transceiver module

3. CWDM DFB transmitter and PIN receiver

4. Complies with IEEE 802.3ba, SFF-8436, SFF-8636, and QSFP+MSA Ethernet standards

5. Maximum power consumption less than 3.5W

6. Built in digital diagnostic function (DDM)

7. Power supply voltage 3.3V

8. Compliant with RoHS environmental standards (lead-free)

9. Class1/1M standard products, compliant with IEC60825-1 requirements

10. Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

11. Meet EMI and ESD requirements

12. Working temperature range (shell temperature): -40 ℃ to 85 ℃

13. Commercial temperature level (shell temperature): 0 ℃ to 70 ℃

Ⅲ、 Application

40GBASE-SR4 40G Ethernet
