Ⅰ、 Product Introduction

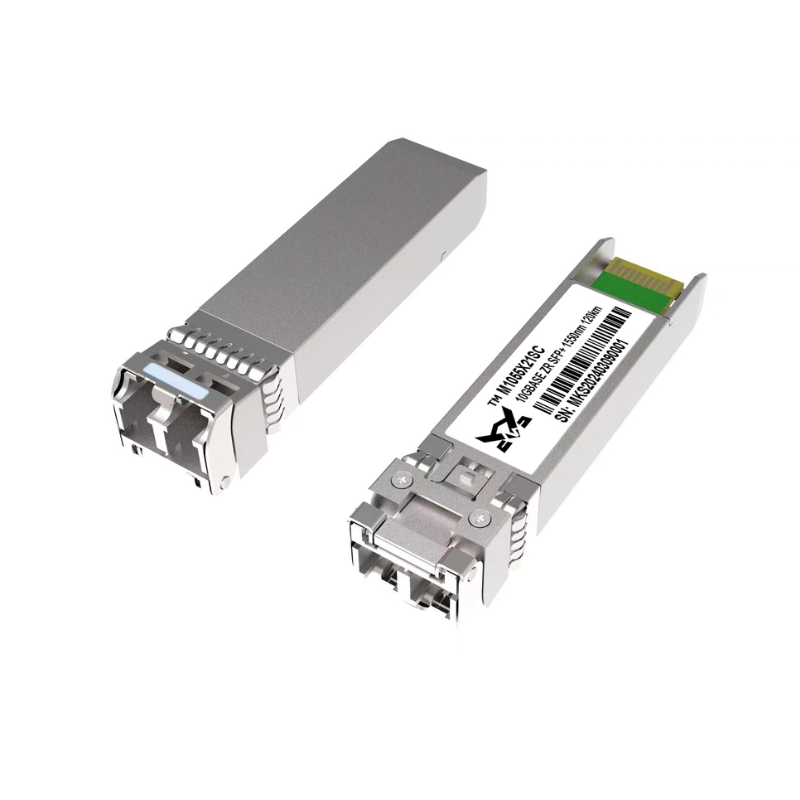

The 10GBASE-ZR SFP+optical module has low power consumption and supports DDM functionality. The transmission distance can reach 120km through single-mode optical fiber, which is suitable for ultra long distance transmission. Attention should be paid to attenuation in near-end transmission.

Ⅱ、 Product features

1. Adopting hot swappable SFP+packaging

2. Full duplex transceiver module

3. 1550nm EML transmitter and APD receiver

4. Complies with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, and SFP+MSA Ethernet standards

5. Maximum power consumption less than 1.6W

6. Built in digital diagnostic function (DDM)

7. Power supply voltage 3.3V

8. Compliant with RoHS environmental standards (lead-free)

9. Class1/1M standard products, compliant with IEC60825-1 requirements

10. Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

11. Meet EMI and ESD requirements

12. Working temperature range (shell temperature): Commercial temperature level: 0 ℃ to 70 ℃, Industrial temperature level: -40 ℃ to 85 ℃

Ⅲ、 Application

10GBASE ER/EW Ethernet

4x, 8x, and 10x fiber channels

CPRI options 2 to 8

OTN G.709 OTU1e/2/2e FEC bit rate
