Ⅰ、 Product Introduction

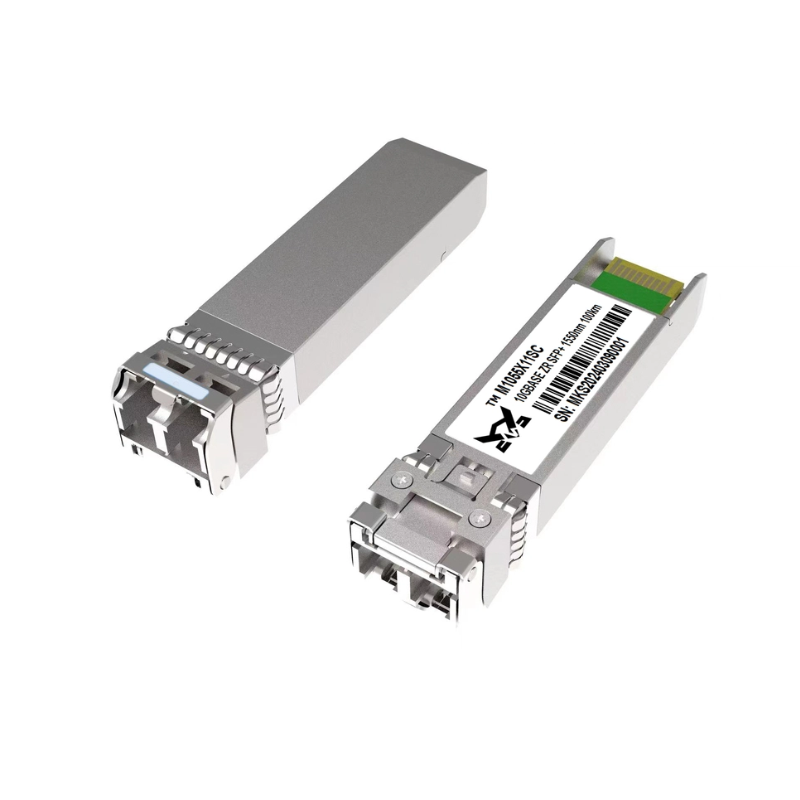

The 10GBASE-ZR SFP+optical module has low power consumption and supports DDM functionality. The transmission distance can reach 100km through single-mode optical fiber, which is suitable for ultra long distance transmission. Attention should be paid to attenuation when transmitting in the near end.

Ⅱ、 Product features

Adopting hot swappable SFP+packaging

Full duplex transceiver module

1550nm EML transmitter and APD receiver

Complies with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, and SFP+MSA Ethernet standards

Maximum power consumption less than 1.6W

Built in digital diagnostic function (DDM)

Power supply voltage 3.3V

Compliant with RoHS environmental standards (lead-free)

Class1/1M standard products, compliant with IEC60825-1 requirements

Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

Meet EMI and ESD requirements

Working temperature range (shell temperature): Commercial temperature level: 0 ℃ to 70 ℃

Industrial temperature level: -40 ℃ to 85 ℃

Ⅲ、 Application

10GBASE ER/EW Ethernet

4x, 8x, and 10x fiber channels

CPRI options 2 to 8

OTN G.709 OTU1e/2/2e FEC bit rate
