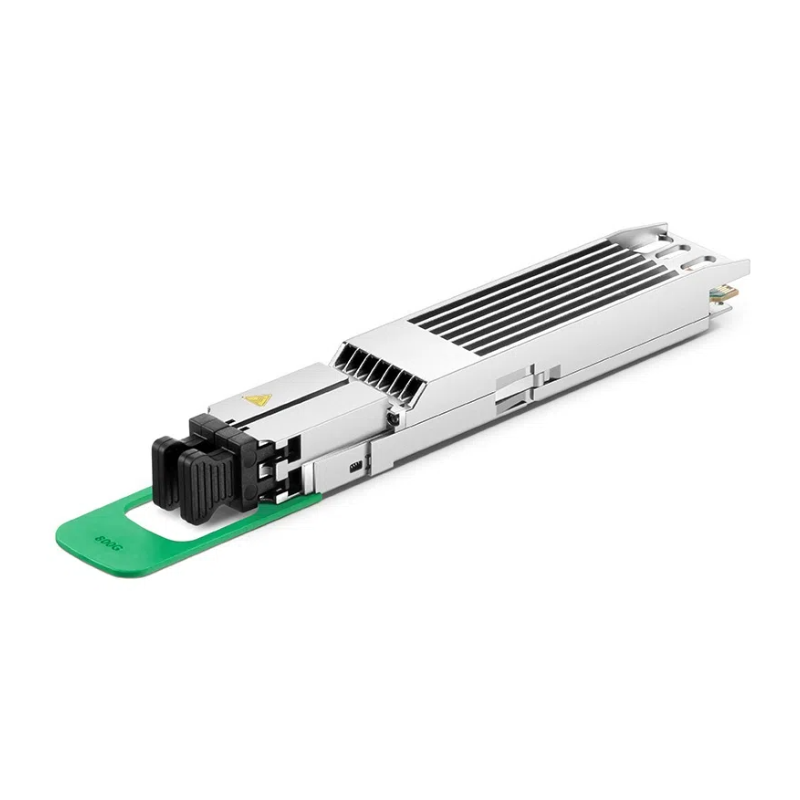

800GBASE-2FR4 OSFP 1310nm 2km

The 800GBASE-2FR4OSFP optical transceiver module is designed for use with dual LC connectors on 800GBASE throughput storage single-mode fibers (SMEs). The OSFP2FR4-800G can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals into 8-channel electrical data output at the receiving end. Its design can withstand the maximum range of external working conditions, including temperature, humidity, and EM!. The OSFP-2FR4-800G optical transceiver is a high-performance, cost-effective module that supports 800G InfiniBand for optical data communication applications.

Product features

Built in Broadcom 7nm DSP chip, with a maximum power consumption of 17W

Through parameter testing to ensure excellent performance, quality, and reliability

The high-speed electrical interface complies with IEEE 802.3ck and IEEE 802.3cu-2021 standards

Compliant with hot swappable OSFP MSA standards

Supports 2x400G branches to increase port density

8x106.25G PAM4 Retimed 2x400GAUI-4 Electrical Interface

Provide higher bandwidth for ultra large data centers and cloud infrastructure

Equipped with digital optical monitoring function, providing powerful diagnostic capabilities

Complies with Class 1 FDA laser safety level

application

·Infinite broadband

·2x400GBASE-FR4

Data center cloud network
