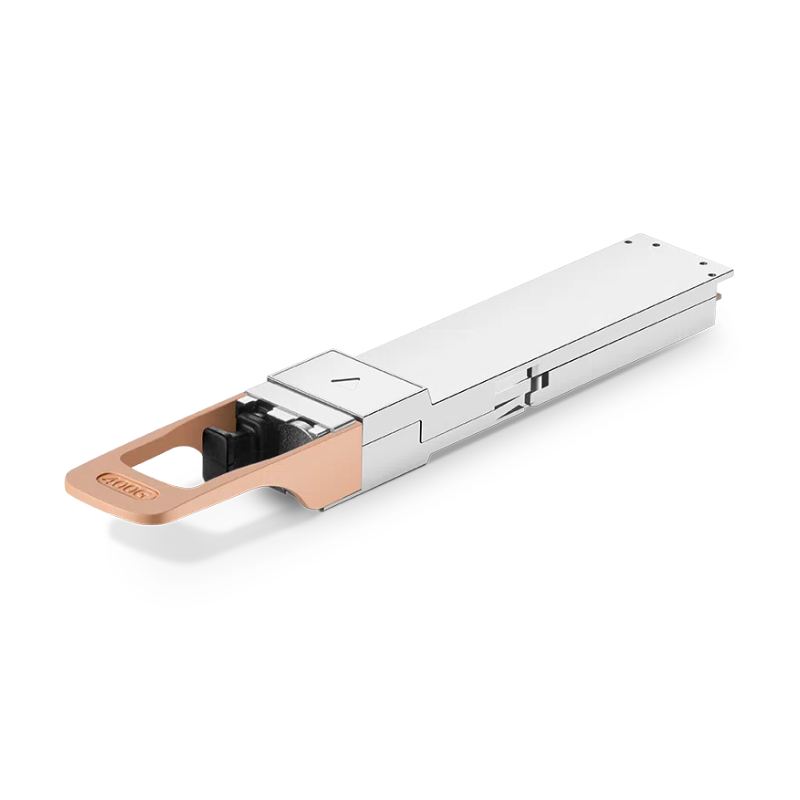

400GBASE-SR4 OSFP PAM4 850nm 50m

400GBASE-VR4FOSFP module, MTP/MPO-12 connector, can reach up to 50 meters through parallel OM4 multimode fiber. It complies with OSFP MSA, IEEE 802.3ck protocol, and 400GAUI-4 standard. The built-in Digital Diagnostic Monitoring (DDM) allows access to real-time operating parameters. Suitable for 400G Ethernet and Infiniband. It also supports 1x400G point-to-point connection.

characteristic

·OSFP MSA

Through PAM4 modulation, the data rate of each channel can reach up to 106.25Gbps

OM4 MMF transmission up to 50 meters

·Single 3.3V power supply

Maximum power consumption 9W

Working environment temperature: 0 ℃~+70 ℃

MTP/MPO-12 (APC) optical connector

·CMIS compliance

application

·400G Ethernet

Infiniband interconnect
