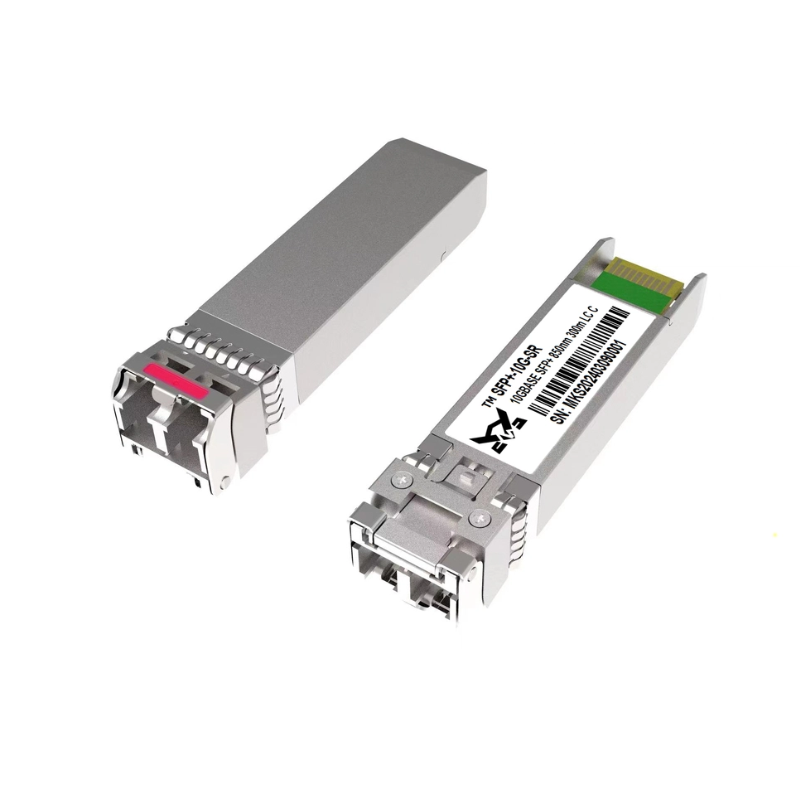

10GBASE-SR SFP+10G optical module 850nm 300m

This SFP+optical module supports a link length of up to 400m on OM4 multimode (300m on OM3 multimode) through LC duplex jumpers. This optical module complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards. According to SFF-8472, DDM digital diagnosis can be performed through a 2-wire serial interface. The operating temperature range of this industrial grade optical module is -40 ° C to 85 ° C, and it can work in harsh industrial environments such as telecommunications, data processing and management, industrial and factory automation applications, outdoor applications, railways and intelligent transportation systems (ITS), marine, oil and gas, mining, etc.

Features:

Optical interface compliant with Leee802.3ae 10GBASE-SR standard

Electrical interfaces that comply with SFF-8431 standards

Hot swappable

850nm VCSEL transmitter, PIN photodetector

The maximum link length on a 2000MHz/km MMF is 300 meters

low power consumption

The maximum link length on a 2000MHz/km MMF is 300 meters

All metal shell with excellent electromagnetic interference performance

Advanced firmware allows for storing encrypted information from customer systems in transceivers

Economically efficient SFP+solution, supporting higher port density and larger bandwidth in compliance with RoHS6 standards (lead-free)
