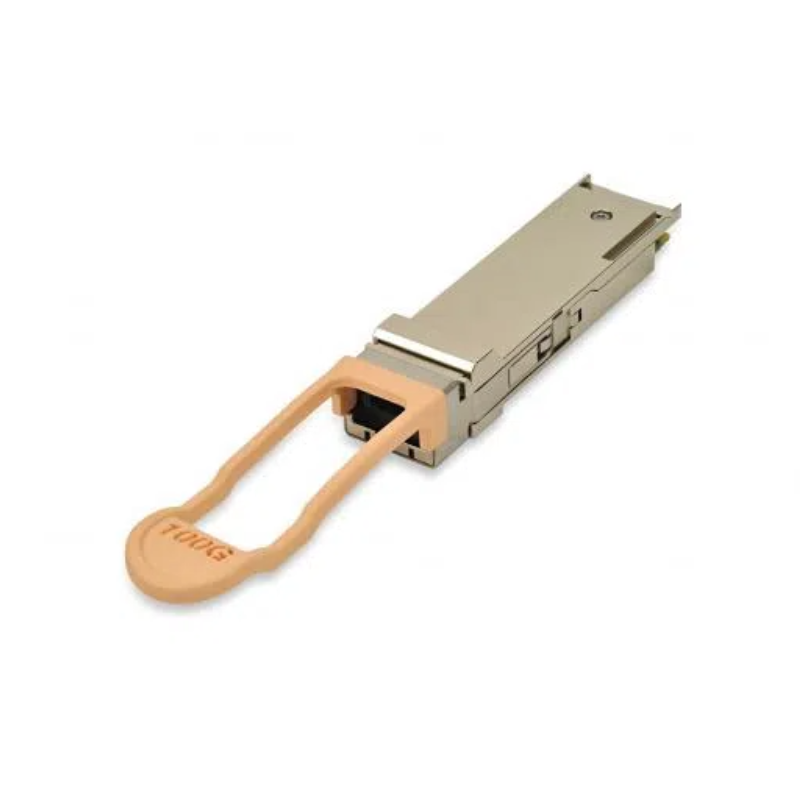

100G QSFP28 SR4 Short wavelength (850nm) optical transceiver module

Product Introduction

The QSFP-100G-SR4 optical transceiver module is based on the 100G Ethernet IEEE 802.3 standard and complies with the SFF-8636 standard

100G Ethernet provides a fast and reliable interface. This product provides four independent sending and receiving channels, each capable of reaching 25Gbps,

The total bandwidth is 100Gbps, which is a high-performance, low-power, and short distance interconnect solution.

Product features

Supports 4-way 25.78125Gbps bidirectional data transmission capability

Compliant with IEEE 802.3 standard

Compliant with SFF-8636 standard

Hot swappable QSFP packaging

850nm VCSEL array laser emitter

Single 1X12 MPO interface

Equipped with digital diagnostic function

The transmission distance on OM3 multimode fiber can reach up to 70 meters

The transmission distance on OM4/OM5 multimode fiber can reach up to 100 meters

Low power consumption (working power consumption<2.0W)

Single power supply 3.3V

Compliant with RoHS-6 standards

Working temperature range (shell temperature): Commercial temperature level: 0 ◦ C to 70 ◦ C

application

100GBASE-SR4 100G Ethernet
