Ⅰ、 Product details:

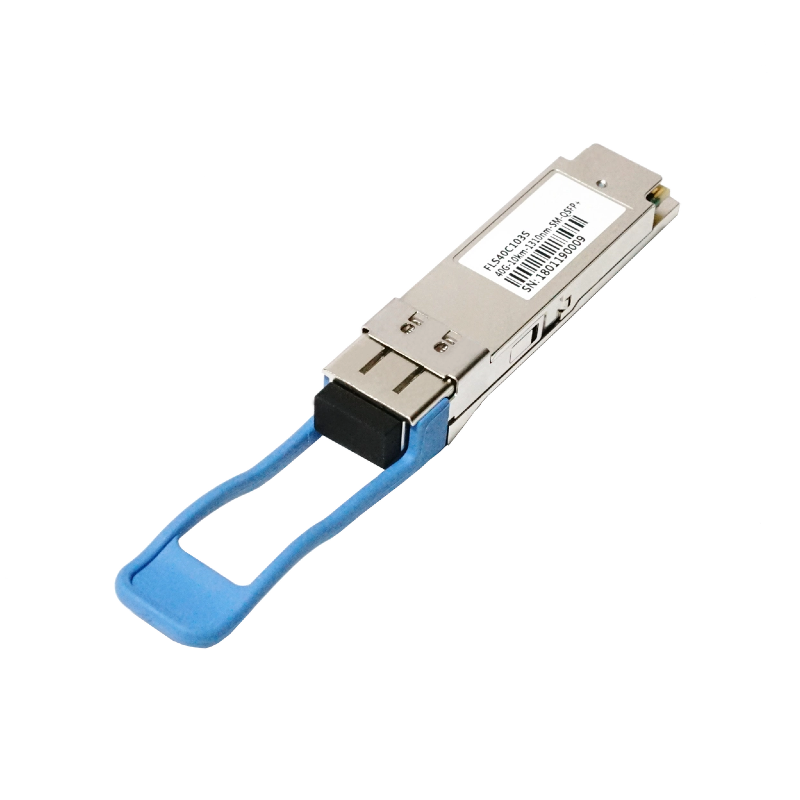

The 40GBASE-LR4 QSFP+optical module adopts LC duplex connectors, which can transmit distances up to 10km through single-mode optical fibers and supports DDM function. The advantages of the 40GBASE-LR4 QSFP+optical module are high density, low cost, high speed, and large capacity.

Ⅱ、 Product features:

1. Adopting hot swappable QSFP+packaging

2. Full duplex transceiver module

3. CWDM DML transmitter and PIN receiver

4. Complies with IEEE 802.3ba, SFF-8436, SFF-8636, and QSFP+MSA Ethernet standards

5. Maximum power consumption less than 3.5W

6. Built in digital diagnostic function (DDM)

7. Power supply voltage 3.3V

8. Compliant with RoHS environmental standards (lead-free)

9. Class1/1M standard products, compliant with IEC60825-1 requirements

10. Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

11. Meet EMI and ESD requirements

12. Working temperature range (shell temperature): -40 ℃ to 85 ℃

13. Commercial temperature level (shell temperature): 0 ℃ to 70 ℃

Ⅲ、 Application:

40GBASE-SR4 40G Ethernet
