Ⅰ、 Product Introduction

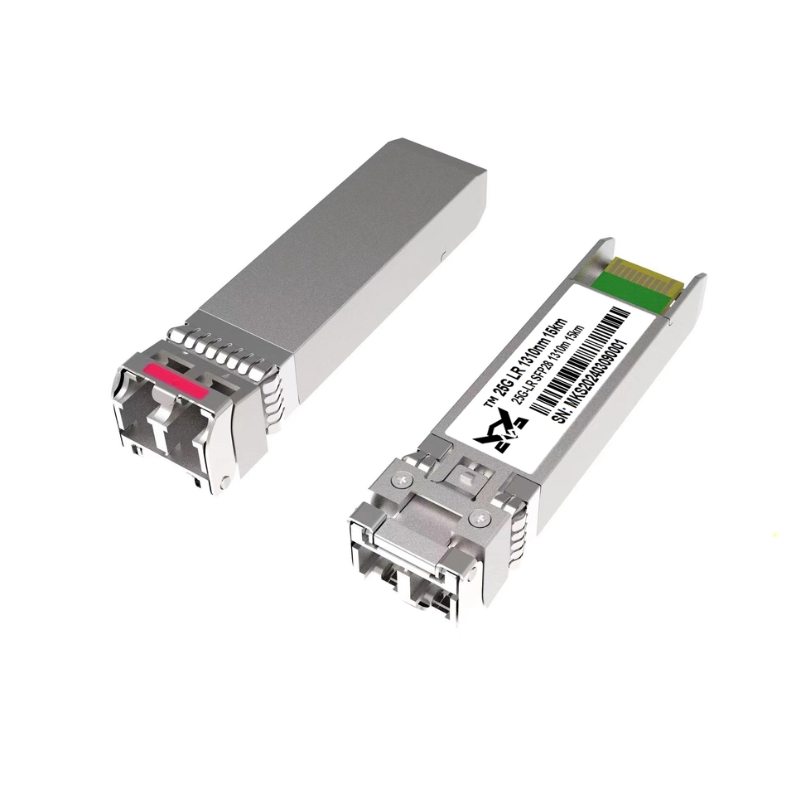

The SFP-10/25G-BIDI-15KM-Txxxx/Rxxxx-x-C10 optical transceiver module is based on the 25G Ethernet IEEE802.3cc standard. Complies with SFF-8402, SFF-8432, and SFF-8472 standards, providing fast and reliable interfaces for 25G Ethernet applications. This product achieves the digital diagnostic function required by SFF-8472 through a 2-wire serial bus.

Ⅱ、 Product features

1. When CDR is enabled, it supports bidirectional data transmission capabilities between 24.3G-26.5Gb/s

2. When using CDR bypass, it supports bidirectional data transmission capabilities of 9.95G-10.31Gb/s

3. Compliant with IEEE 802.3cc standard

4. Compliant with SFF-8402 standard

5. Compliant with SFF-8432 standard

6. Compliant with SFF-8472 standard

7. The transmitter and receiver have internal CDR function

8. Hot swappable SFP28 package

9. DFB laser transmitter and PIN receiver

10. Single LC interface

11. Equipped with digital diagnostic function

12. The transmission distance on single-mode optical fiber can reach up to 15 kilometers

13. Single power supply 3.3V

14. Compliant with RoHS standards

15. Working temperature range (shell temperature): -40 ◦ C to 85 ◦ C

16. Commercial temperature level (shell temperature): 0 ◦ C to 70 ◦ C

Ⅲ、 Application

25GBASE-LR Ethernet

10GBASE-LR Ethernet

CPRI and eCPRI wireless networks
