Ⅰ、 Product Introduction

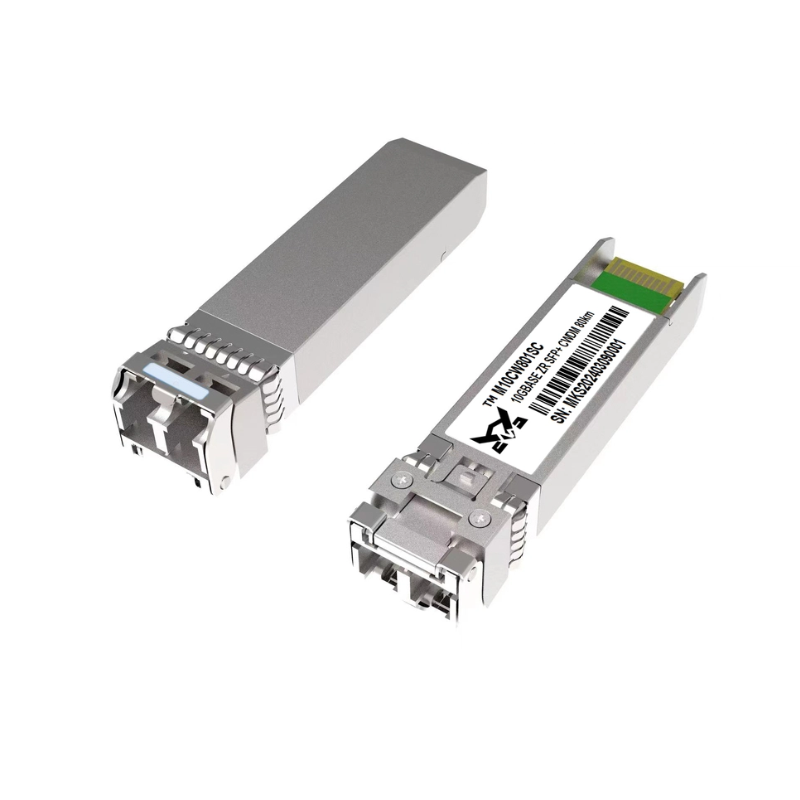

The 1470-1610nm CWDM SFP+optical module has 8 wavelength channels to choose from (1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm). This optical module adopts CWDM technology, which can combine optical signals of different wavelengths through an external wavelength division multiplexer and transmit them through a single optical fiber, thereby saving fiber resources. The longest transmission distance can reach 80km, making it an economical and efficient network connection solution widely used in network environments such as campuses, data centers, and metropolitan areas.

Ⅱ、 Product features

1. Adopting hot swappable SFP+packaging

2. Full duplex transceiver module

3. CWDM EML transmitter and APD receiver

4. Complies with IEEE 802.3ae, SFF-8472, SFF-8431, and SFP+MSA Ethernet standards

5. Maximum power consumption less than 1.5W

6. Built in digital diagnostic function (DDM)

7. Power supply voltage 3.3V

8. Compliant with RoHS environmental standards (lead-free)

9. Class1/1M standard products, compliant with IEC60825-1 requirements

10. Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

11. Meet EMI and ESD requirements

12. Working temperature range (shell temperature): Commercial temperature level: 0 ℃ to 70 ℃, Industrial temperature level: -40 ℃ to 85 ℃

Ⅲ、 Application

10GBASE ER/EW Ethernet

4x, 8x, and 10x fiber channels

CPRI options 2 to 8

OTN G.709 OTU1e/2/2e FEC bit rate
