Ⅰ、 Product Introduction

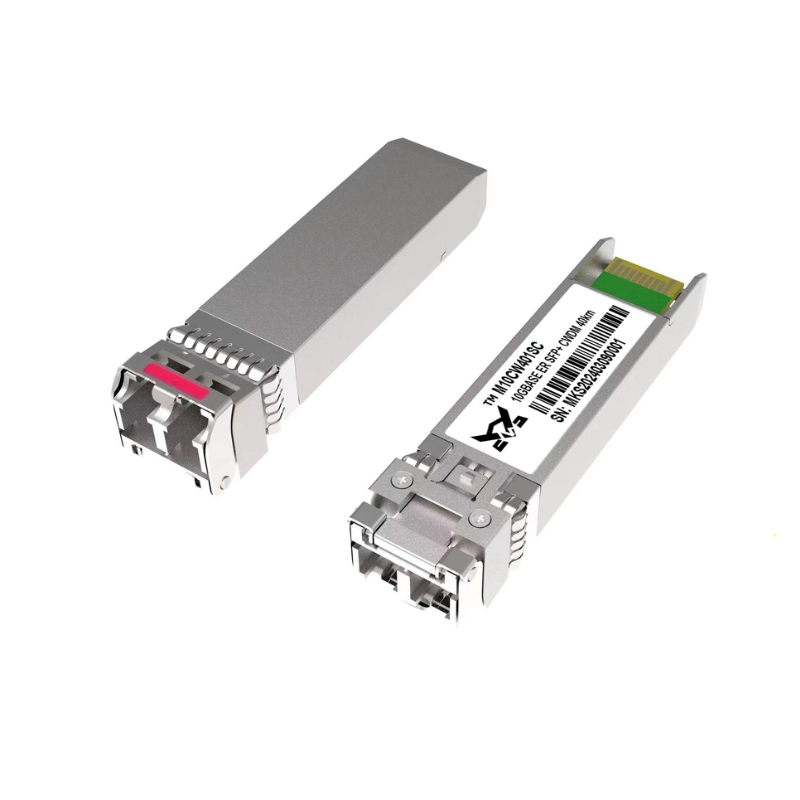

The 1270-1610nm CWDM SFP+optical module has 18 wavelength channels to choose from (1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm). This optical module adopts CWDM technology, which can combine optical signals of different wavelengths through an external wavelength division multiplexer and transmit them through a single optical fiber, thereby saving fiber resources. The longest transmission distance can reach 40km, making it an economical and efficient network connection solution widely used in network environments such as campuses, data centers, and metropolitan areas.

Ⅱ、 Product features

Adopting hot swappable SFP+packaging

Full duplex transceiver module

CWDM EML transmitter and PIN receiver

Complies with IEEE 802.3ae, SFF-8472, SFF-8431, and SFP+MSA Ethernet standards

Maximum power consumption less than 1.5W

Built in digital diagnostic function (DDM)

Power supply voltage 3.3V

Compliant with RoHS environmental standards (lead-free)

Class1/1M standard products, compliant with IEC60825-1 requirements

Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

Meet EMI and ESD requirements

Working temperature range (shell temperature): Commercial temperature level: 0 ℃ to 70 ℃, Industrial temperature level: -40 ℃ to 85 ℃

Ⅲ、 Application

10GBASE ER/EW Ethernet

4x, 8x, and 10x fiber channels

CPRI options 2 to 8

OTN G.709 OTU1e/2/2e FEC bit rate
