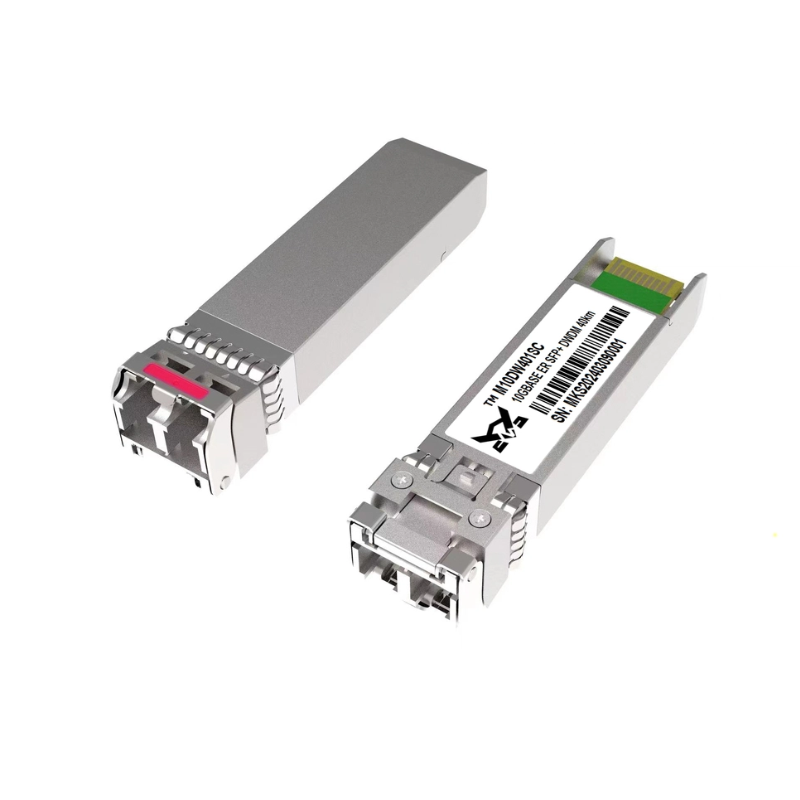

Ⅰ、 Product Introduction

The 10GBASE-DWDM SFP+optical module adopts DWDM technology, which multiplexes multiple optical signals into a single fiber for transmission using different wavelengths. This operation does not require any power consumption. The 10GBASE-DWDM SFP+optical module can meet the needs of ultra large capacity and ultra long distance transmission to the greatest extent possible, providing stable guarantees for multi service operation and future network upgrading and expansion. In addition, it also supports multiple networking modes, and wavelength scheduling can be performed between nodes. It has various advantages such as easy capacity expansion, flexible service access, high bandwidth utilization, and high reliability, with a maximum transmission distance of 40km. It is widely used in different fields of communication networks, including long-distance backbone networks, metropolitan area networks (MAN), and Local area network (LAN), etc.

Ⅱ、 Product features

1. Adopting hot swappable SFP+packaging

2. Full duplex transceiver module

3. DWDM EML transmitter and PIN receiver

4. Complies with IEEE 802.3ae, SFF-8472, SFF-8431, and SFP+MSA Ethernet standards

5. Maximum power consumption less than 1.5W

6. Built in digital diagnostic function (DDM)

7. Power supply voltage 3.3V

8. Compliant with RoHS environmental standards (lead-free)

9. Class1/1M standard products, compliant with IEC60825-1 requirements

10. Complies with Telcordia (Bellcore) GR-468-CORE reliability requirements

11. Meet EMI and ESD requirements

12. Working temperature range (shell temperature): Commercial temperature level: 0 ℃ to 70 ℃, Industrial temperature level: -40 ℃ to 85 ℃

Ⅲ、 Application

10GBASE ER/EW Ethernet

4x, 8x, and 10x fiber channels

CPRI options 2 to 8

OTN G.709 OTU1e/2/2e FEC bit rate
